Alpen Apex XP 5-30x56 Mil-Dot Riflescope with SmartDot Technology
Features
- Premium riflescope with HD glass and MilDot illuminated reticle
- Specially designed for long-range shots
- Zoom with FluoDigits technology (fluorescent zoom digits)
- Innovative, premium coating for crystal-clear, razor-sharp images
- Innovative SmartDot technology saves energy and time
- Reticle in the First Focal Plane
- Reticle adjustment with MRAD
- Waterproof and recoil-proof
CA Residents: Prop 65 WARNING(S)
Description
The ALPEN Apex XP 5-30x56 riflescope with HD glass was specially designed for long-range shots and has a tube diameter of 34 mm. The premium optics are equipped with a MilDot illuminated reticle, which is located in the first focal plane and therefore increases in size with the zoom level.
The reticle can be easily adjusted with MRAD - i.e. 1 click = 1 cm at 100 meters. This means that you don't need to do any calculations using the MOA (minute of angle) system. In addition, the ALPEN Apex XP 5-30x56 is also waterproof and recoil-proof, making it suitable for a wide range of conditions.
ZOOM WITH
FLUODIGITS TECHNOLOGY
The zoom ring features a comfortable grooved design and can be moved effortlessly with a small knob. And thanks to the FluoDigits technology, the riflescope is also easy to use in low-light conditions: the fluorescent zoom numbers display the zoom level discreetly during twilight or even in the dark without revealing your location - with a battery life of at least 5 hours. Perfect for use with attachments!
COATING
The ALPEN Apex XP 5–30x56 riflescope features an innovative and premium coating that produces a clear and razor-sharp image of your target.
INNOVATIVE
SMARTDOT TECHNOLOGY
MADE IN GERMANY
Energy-saving and always ready for action - thanks to the SmartDot technology and built-in tilt sensor, the illuminated reticle switches on and off automatically when you move the rifle to a shooting/idle position. In addition to prolonging the battery life, this also saves you valuable time. The light unit is located on the left side of the tube together with the parallax compensation to ensure that you can prepare for action as quickly as possible: As you'd expect, the riflescope also comes with a zero stop function.
WEATHERPROOF
AND RECOIL-PROOF

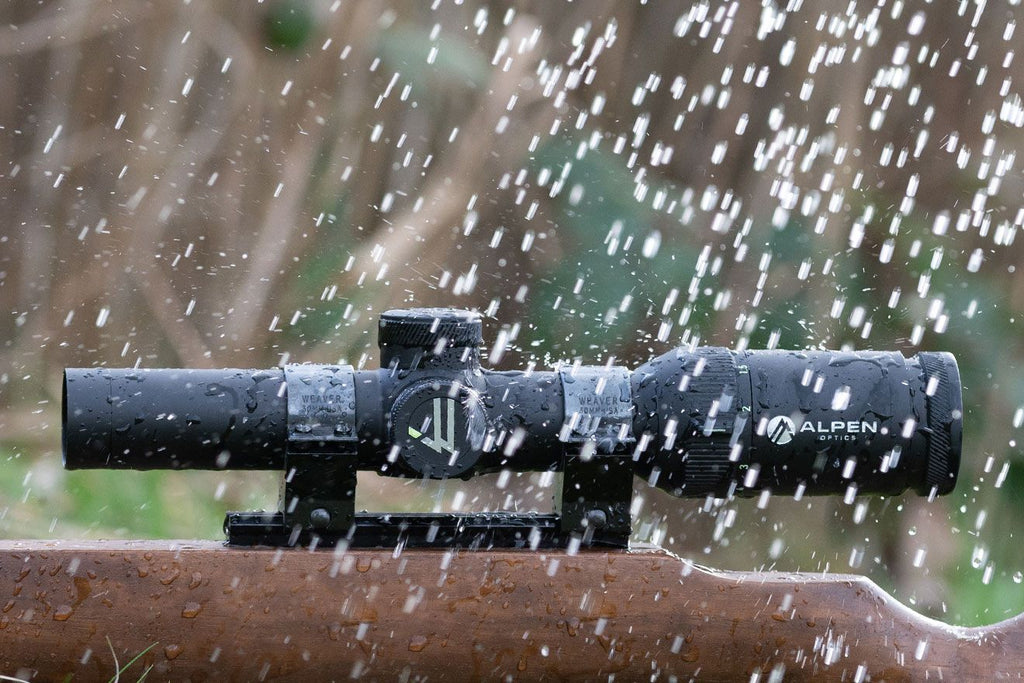

Thanks to the premium ALPEN optics, the riflescope is also suitable for use in adverse weather conditions. It is waterproof to up to 3 metres (IPX7), and can therefore withstand strong rain, snow, fog or even a short spell in a stream. The sturdy housing provides a reliable seal and prevents liquid from getting inside the optics. In addition, the optics are filled with nitrogen to prevent the lens from fogging up and obstructing your view in the event of abrupt changes in temperature. As a premium riflescope, the ALPEN Apex XP is recoil-resistant up to 1000 grams (equivalent to a Magnum caliber).
SPECS
| Item Number | 6015 |
| Magnification | 5-30x |
|
Reticle |
MilDot |
|
Focal Plane |
First |
|
Illumination |
Yes; Red Dot |
|
Side parallax |
Yes; 100 M |
|
Lens coating |
Fully Multi-coated |
|
Waterproof |
Yes (3m) |
|
Shockproof |
up to 1000 g* |
|
F.O.V(@100yds) (Low/High) |
23.3 - 3.9 ft |
|
F.O.V(Degrees) (Low/High) |
4.46 - 0.74° |
|
Exit pupil Low/High |
7.3 - 1.9 mm |
|
Eye relief |
77 - 92 mm |
|
Adjustment Graduation |
0.1 MRAD Click |
|
Elevation Travel Range |
35 Mrad(low) - 10 Mrad(High) (120 MOA) |
|
Windage Travel Range |
14.5 Mrad(Low) - 10 Mrad(High) (52 MOA) |
|
Tube Diameter |
34 mm |
|
Rings Included |
No |
|
Lens covers Included |
Yes, Flip-Up Covers |
Warranty
USA Limited Lifetime Warranty when product is registered within 60 days of purchase. Click Here to register.
MANUAL
To download printable PDF manual Click Here
To download printable PDF technical drawing Click Here
PARALLAX COMPENSATION FOR PERFECT POSITIONING
Simply set the parallax compensation to the desired range and the position of the reticle will remain the same. This is particularly useful if you look into the eyepiece at a slight angle, as the reticle will stay locked on your target.
FIRST FOCAL PLANE (FFP) RETICLE
The reticle is located in the first focal plane, and therefore increases in size when you zoom in. This ensures that the subtension remains constant at all times.
ALWAYS SPOT ON
Thanks to the innovative SmartDot technology with a built-in tilt sensor, the light spot switches on and off automatically based on the position of the rifle. This saves you valuable time and prevents the battery from draining.
KEEP TRACK OF THE ZOOM LEVEL
Fluorescent zoom numbers on the eyepiece – the innovative FluoDigits technology displays the zoom level discreetly in low-light conditions so that you don’t reveal your location. Perfect for attachments!
BRIGHTER IMAGES
The ultra-bright coating lets even more light into your eyes so that you won’t be left in the dark during twilight and in challenging light conditions.
DETAILED, HIGH-RESOLUTION IMAGES
Ideal for hiking, hunting and trekking – the high-definition optics produce an outstanding image in all types of conditions. The surroundings are rendered in high resolution and stunning detail. In addition, the high-performance HD glass has a very high light transmission, and produces bright images even in adverse weather and light conditions.
WATERTIGHT DESIGN
Thanks to the waterproof housing that prevents liquids from reaching the inside of the optics, you don’t need to worry about heavy rain or dropping the binoculars in a puddle.
ZERO STOP
This riflescope is equipped with a zero stop function so that you can readjust the optics, e.g. due to a change in the wind conditions. With a correctly configured zero stop, you can return to the zero position without conducting a visual check. The zero stop prevents you from going below the zero position.
MORE LIGHT FOR CLEARER IMAGES
The optics are fully coated with a premium multi-layer coating, which increases the light transmission to up to 95% to produce stunningly bright images.
WEATHERPROOF DESIGN
The binoculars are filled with nitrogen, which prevents the inside of the lenses from fogging up and obstructing your view during abrupt changes in temperature.
PREMIUM RECOIL-RESISTANT OPTICS
This premium riflescope can withstand recoil forces of up to 1000 grams, equivalent to a Magnum caliber.
PERFECT FOR HIGH MAGNIFICATIONS
Featuring a tube diameter of 34 mm, this scope lets in a large amount of light so that you can view bright images even at high magnifications.
NITROGEN FILLING
The temperature can change rapidly when you’re out in the wild. To prevent the lenses from fogging up on the inside and obstructing your view, the optics are filled with nitrogen.
