Alpen Apex XP 1-6x24 Duplex Riflescope with SmartDot Technology
Features
- Premium drive hunt riflescope with daylight-friendly duplex illuminated reticle
- Sensational field of view of 38 m at 100 m
- Zoom with FluoDigits technology (fluorescent zoom digits)
- Innovative, premium coating for crystal-clear, razor-sharp images
- Innovative SmartDot technology saves energy and time
- Reticle in the second focal plane
- Reticle adjustment with MRAD
- Waterproof and recoil-proof
CA Residents: Prop 65 WARNING(S)
Description

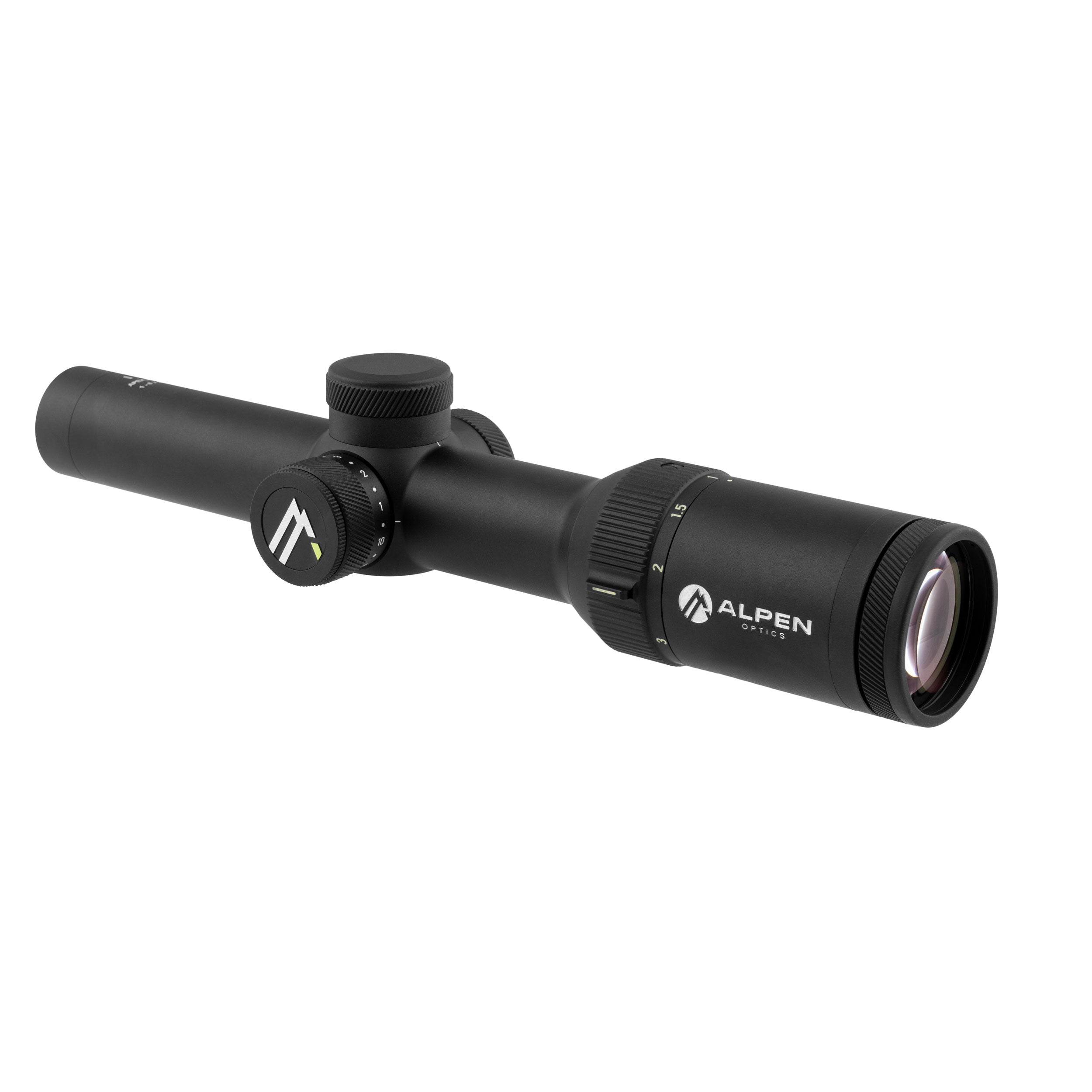

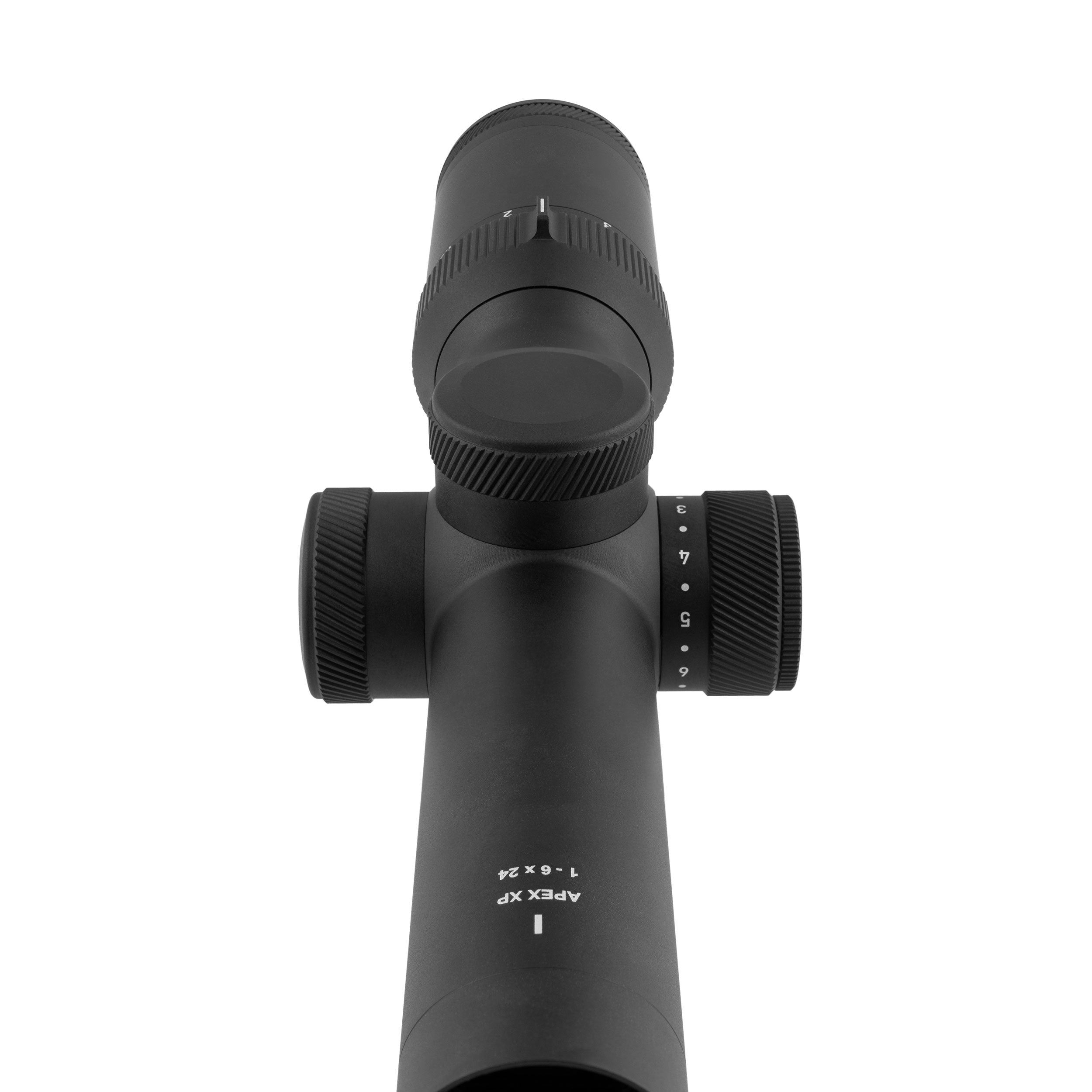

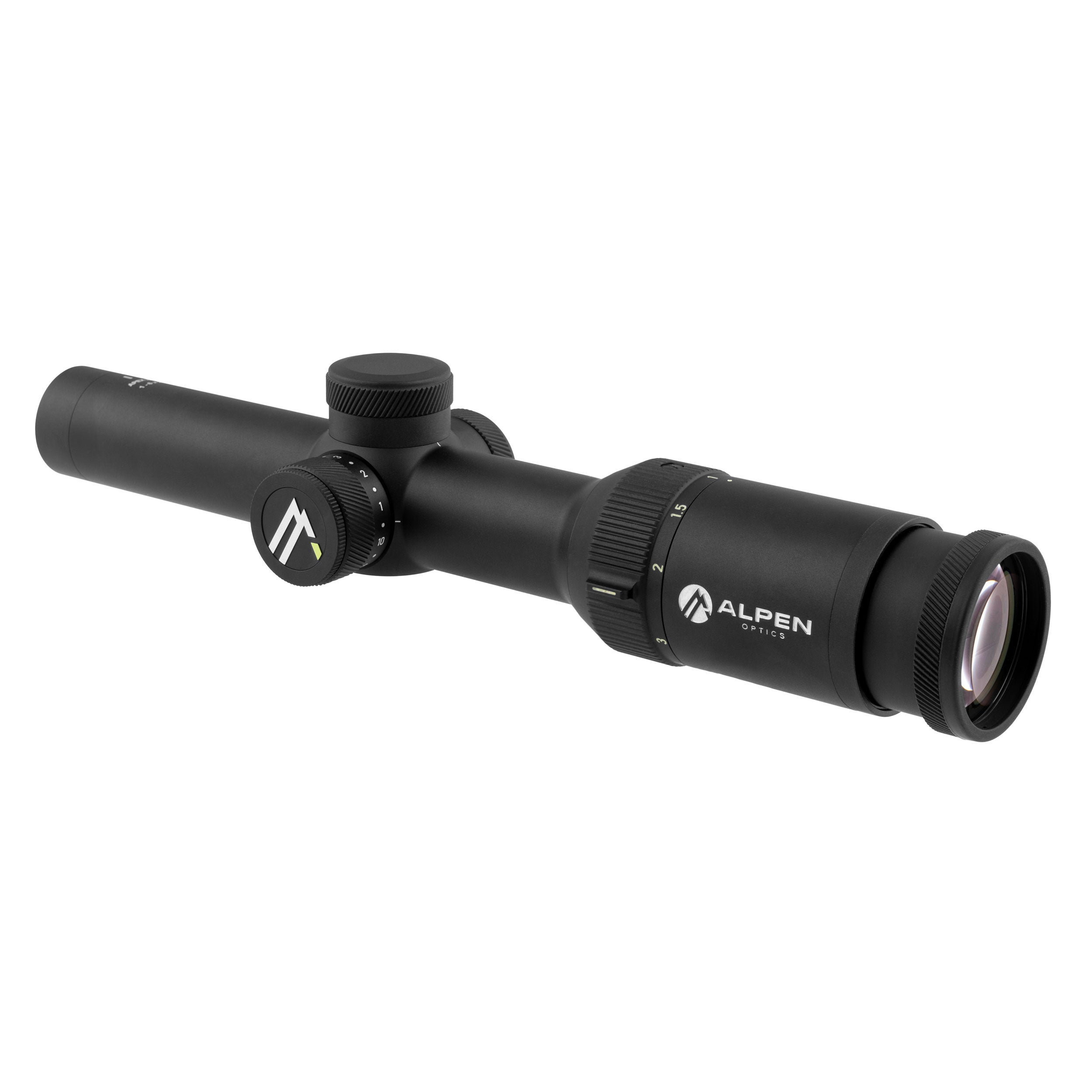

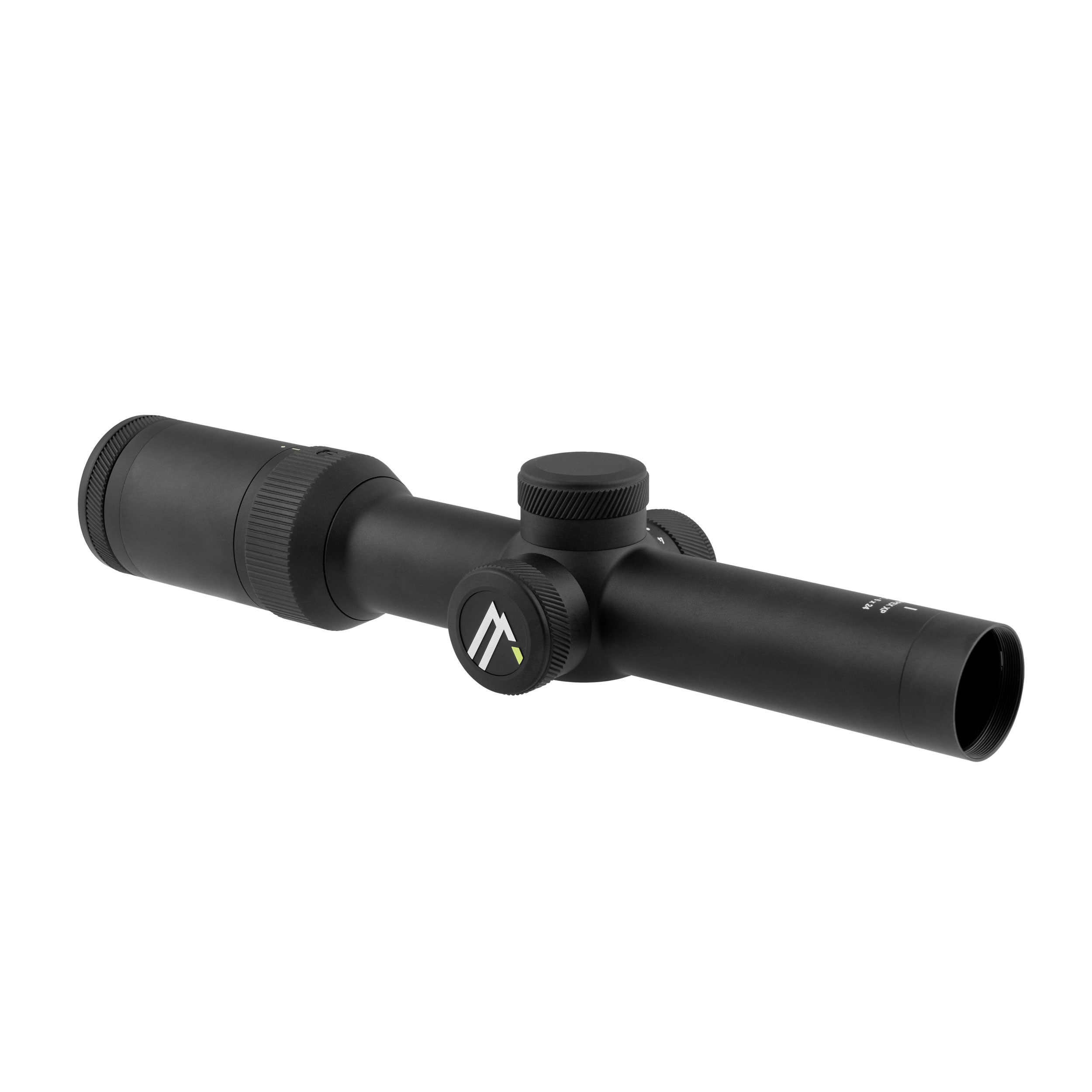

The ALPEN Apex XP 1-6x24 is a typical drive hunt riflescope with a tube diameter of 30 mm. It features a duplex illuminated reticle designed for daylight conditions and a sensational field of view of approximately 38 m at 100 m. In addition, the reticle is located in the second focal plane and does not increase in size when you zoom in.
The reticle can be easily adjusted with MRAD - i.e. 1 click = 1 cm at 100 meters. This means that you don't need to do any calculations using the MOA (minute of angle) system. The robust ALPEN Apex XP 1-6x24 rifle is also completely waterproof and recoil-proof.
ZOOM WITH
FLUODIGITS TECHNOLOGY
The zoom ring on the ALPEN Apex XP 1-6x24 riflescope features a comfortable grooved design and can be moved effortlessly with a small knob. Thanks to the built-in FluoDigits technology, the riflescope is also suitable for use in low-light conditions and with attachments: The fluorescent zoom numbers display the zoom level discreetly during twilight or even in the dark without revealing your location - with a battery life of at least 5 hours.
COATING
The riflescope features an innovative and premium coating that renders images in crystal-clear, razor-sharp detail.
INNOVATIVE
SMARTDOT TECHNOLOGY
MADE IN GERMANY

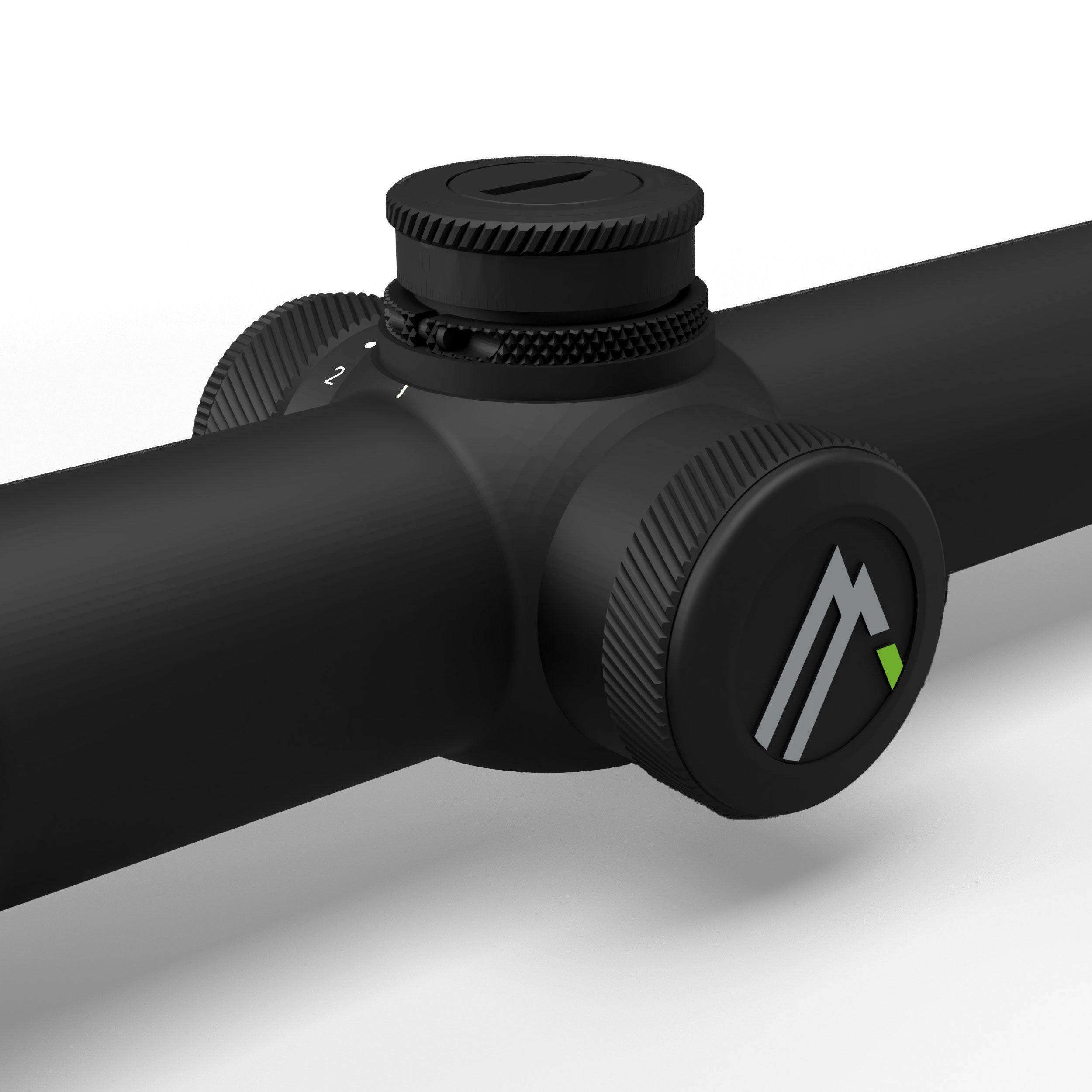

Probably the smartest way to use a red dot! With SmartDot technology, control is completely automatic via the latest circuit boards in the device - based only on the inclination of the gun. So the red dot will automatically turn off and stay in sleep mode when you put it down. When you return the gun to the ready position, the device is fully operational within a few milliseconds. This saves you valuable time and allows you to concentrate on the essentials - the hunt and the wild! For maximum energy saving, the device automatically shuts down completely after about three hours in sleep mode. Activating the SmartDot Technology is also very simple: You simply adjust the red dot to the desired brightness with a short turn of the knob.
WEATHERPROOF
AND RECOIL-PROOF
Thanks to the premium ALPEN optics, the riflescope is also suitable for use in adverse weather conditions. It is waterproof to up to 3 metres (IPX7), and can therefore withstand strong rain, snow, fog or even a short spell in a stream. The sturdy housing provides a reliable seal and prevents liquid from getting inside the optics. In addition, the optics are filled with nitrogen to prevent the lens from fogging up and obstructing your view in the event of abrupt changes in temperature. As a premium riflescope, the ALPEN Apex XP is recoil-resistant up to 1000 grams (equivalent to a Magnum caliber).
SPECS
| Item Number | 6010 |
| Magnification | 1-6x |
|
Reticle |
Duplex |
|
Focal Plane |
Second |
|
Illumination |
Yes; Red Dot |
|
Side parallax |
Yes; 100 M |
|
Lens coating |
Fully Multi-coated |
|
Waterproof |
Yes (3m) |
|
Shockproof |
up to 1000 g* |
|
F.O.V(@100yds) (Low/High) |
113.4 - 18.8 ft |
|
F.O.V(Degrees) (Low/High) |
21.4 - 3.58° |
|
Exit pupil Low/High |
12 - 4 mm |
|
Eye relief |
88 - 100 mm |
|
Adjustment Graduation |
0.1 MRAD Click |
|
Elevation Travel Range |
29 MRAD(Low) - 10 MRAD(High) (100 MOA) |
|
Windage Travel Range |
29 MRAD(low) - 10 MRAD(High) (100 MOA) |
|
Tube Diameter |
30 mm |
|
Rings Included |
No |
|
Lens covers Included |

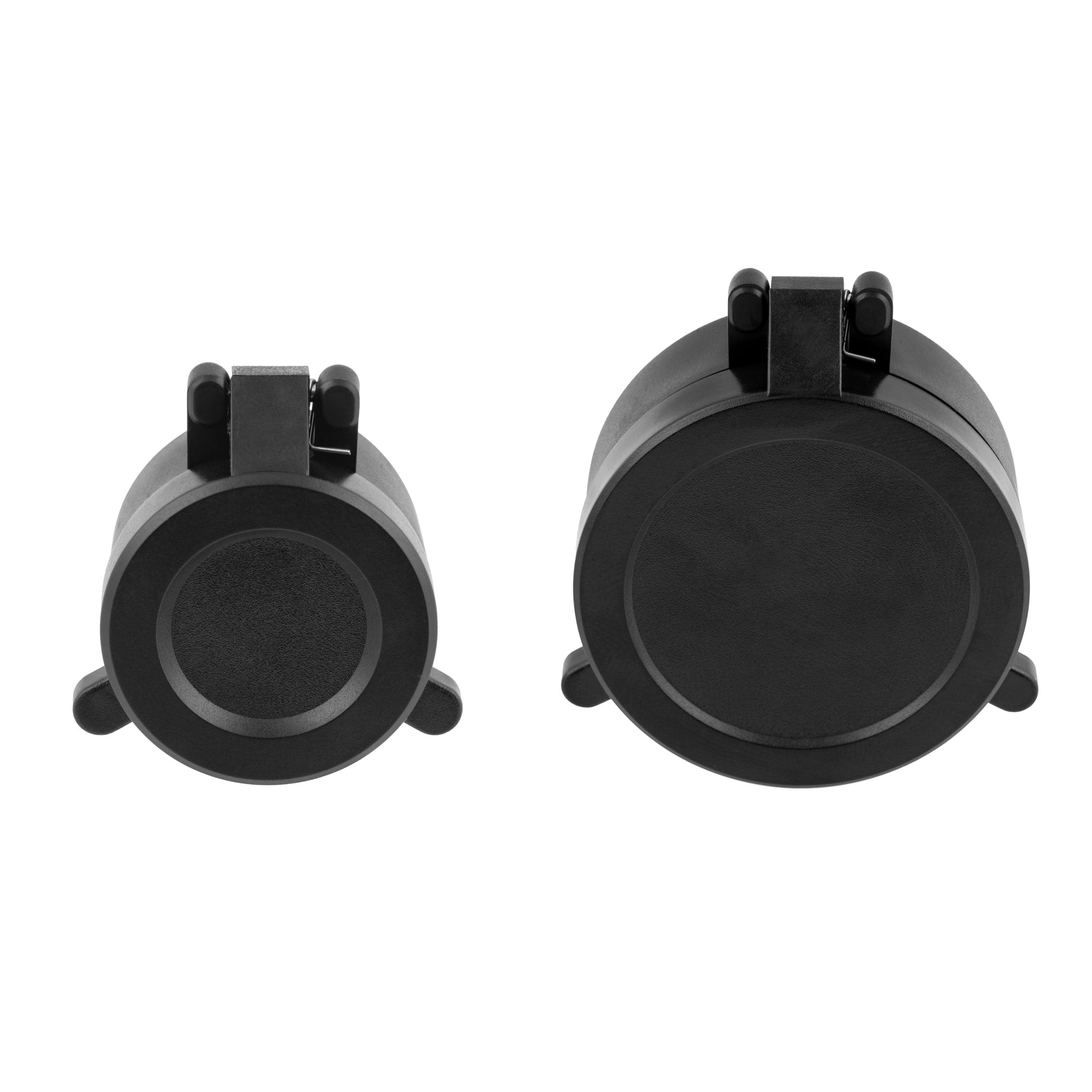

Yes, Flip-Up Covers |
Warranty
USA Limited Lifetime Warranty when product is registered within 60 days of purchase. Click Here to register.
MANUAL
To download printable PDF manual Click Here

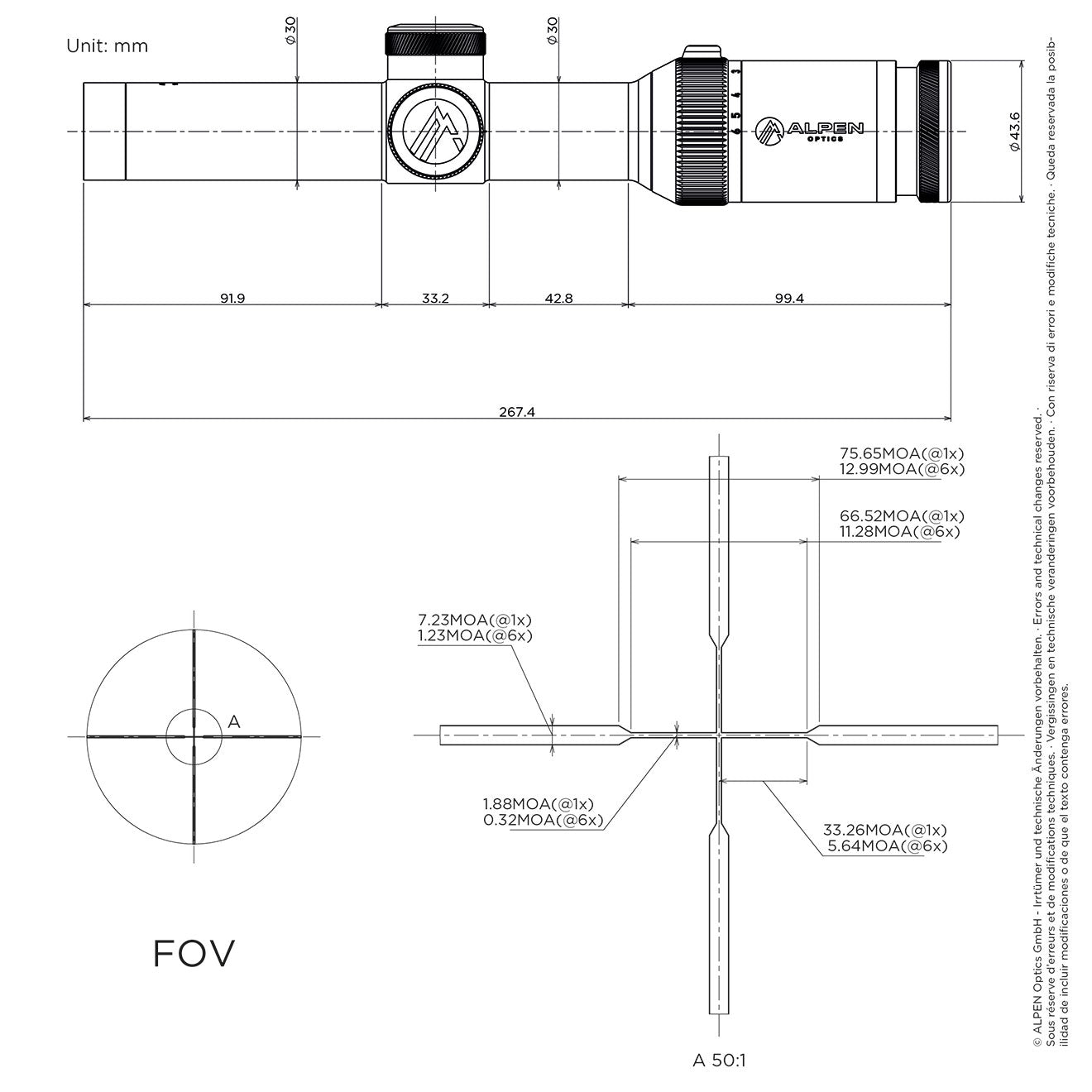

To download printable PDF technical drawing Click Here
SECOND FOCAL PLANE (SFP) RETICLE
The reticle is located in the second focal plane, and therefore does not increase in size when you zoom in. As a result, the subtension depends on the zoom level.
ALWAYS SPOT ON
Thanks to the innovative SmartDot technology with a built-in tilt sensor, the light spot switches on and off automatically based on the position of the rifle. This saves you valuable time and prevents the battery from draining.
KEEP TRACK OF THE ZOOM LEVEL
Fluorescent zoom numbers on the eyepiece – the innovative FluoDigits technology displays the zoom level discreetly in low-light conditions so that you don’t reveal your location. Perfect for attachments!
BRIGHTER IMAGES
The ultra-bright coating lets even more light into your eyes so that you won’t be left in the dark during twilight and in challenging light conditions.
WATERTIGHT DESIGN
Thanks to the waterproof housing that prevents liquids from reaching the inside of the optics, you don’t need to worry about heavy rain or dropping the binoculars in a puddle.
ZERO STOP
This riflescope is equipped with a zero stop function so that you can readjust the optics, e.g. due to a change in the wind conditions. With a correctly configured zero stop, you can return to the zero position without conducting a visual check. The zero stop prevents you from going below the zero position.
MORE LIGHT FOR CLEARER IMAGES
The optics are fully coated with a premium multi-layer coating, which increases the light transmission to up to 95% to produce stunningly bright images.
WEATHERPROOF DESIGN
The binoculars are filled with nitrogen, which prevents the inside of the lenses from fogging up and obstructing your view during abrupt changes in temperature.
PREMIUM RECOIL-RESISTANT OPTICS
This premium riflescope can withstand recoil forces of up to 1000 grams, equivalent to a Magnum caliber.
SHOWS YOUR TARGET IN THE RIGHT LIGHT
In general, larger tube diameters provide better light transmission. Featuring a tube diameter of 30 mm, this scope lets in plenty of light to render your target clearly.
NITROGEN FILLING
The temperature can change rapidly when you’re out in the wild. To prevent the lenses from fogging up on the inside and obstructing your view, the optics are filled with nitrogen.
